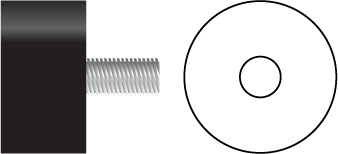

Vibration Isolation Mounts 9000 Series
Please click on the SRG # for the product to view the product page.
Scroll Right/Left to see the full table
| SRG # | OD | THK | A STUD Thread Size | A STUD Thread Length | Add |
|---|---|---|---|---|---|
| VMA-8318 | 1 | 1/2 | 1/4-20 | 1 | |
| VMA-9001 | .375 | 1/4 | 10-32 | 3/8 | |
| VMA-9002 | 7/16 | 1/4 | 8-32 | 1 | |
| VMA-9003 | 7/16 | 7/16 | 6-32 | 1/4 | |
| VMA-9004 | 7/16 | 7/16 | 6-32 | 3/8 | |
| VMA-9005 | 7/16 | 7/16 | 8-32 | 1/4 | |
| VMA-9006 | 1/2 | 1/4 | 6-32 | 1/4 | |
| VMA-9007 | 1/2 | 1/4 | 6-32 | 3/8 | |
| VMA-9008 | 1/2 | 1/4 | 8-32 | 1/2 | |
| VMA-9009 | 1/2 | 1/4 | 8-32 | 3/4 | |
| VMA-9010 | 1/2 | 3/8 | 8-32 | 1/2 | |
| VMA-9011 | 1/2 | 1/2 | 6-32 | 3/8 | |
| VMA-9012 | 1/2 | 1/2 | 6-32 | 1 | |
| VMA-9013 | 1/2 | 1/2 | 8-32 | 3/8 | |
| VMA-9014 | 9/16 | 1/4 | 1/4-20 | 1 | |
| VMA-9015 | 9/16 | 1/2 | 8-32 | 3/8 | |
| VMA-9016 | .590 | .310 | 6-32 | 3/8 | |
| VMA-9017 | 5/8 | 5/8 | 1/4-20 | 1/2 | |
| VMA-9018 | 5/8 | 5/8 | 1/4-20 | 3/8 | |
| VMA-9019 | 5/8 | 5/8 | 1/4-20 | 1 | |
| VMA-9020 | 3/4 | 3/8 | 1/4-20 | 5/8 | |
| VMA-9021 | 3/4 | 3/8 | 8-32 | 1/2 | |
| VMA-9022 | 3/4 | 3/8 | 8-32 | 1/2 | |
| VMA-9023 | 3/4 | 1/2 | 1/4-20 | 1-1/4 | |
| VMA-9024 | 3/4 | 1/2 | 10-32 | 1 | |
| VMA-9025 | 3/4 | 5/8 | 5/16-18 | 3/8 | |
| VMA-9026 | 3/4 | 5/8 | 5/16-18 | 5/8 | |
| VMA-9027 | 3/4 | 5/8 | 10-32 | 3/8 | |
| VMA-9028 | 3/4 | 5/8 | 10-32 | 1/4 | |
| VMA-9029 | 3/4 | 5/8 | 10-32 | 1 | |
| VMA-9030 | 3/4 | 5/8 | 10-32 | 3/8 | |
| VMA-9031 | 3/4 | 3/4 | 1/4-20 | 1/2 | |
| VMA-9032 | 1 | 1/4 | 1/4-20 | 1/2 | |
| VMA-9033 | 1 | 3/8 | 5/16-18 | 5/8 | |
| VMA-9034 | 1 | 3/8 | 5/16-18 | 1 | |
| VMA-9035 | 1 | 3/8 | 5/16-18 | 1-1/4 | |
| VMA-9036 | 1 | 3/8 | 5/16-18 | 5/8 | |
| VMA-9037 | 1 | 3/8 | 1/4-20 | 3/4 | |
| VMA-9038 | 1 | 3/8 | 1/4-20 | 1 | |
| VMA-9039 | 1 | 1/2 | 5/16-18 | 5/8 | |
| VMA-9040 | 1 | 1/2 | 1/4-20 | 1/2 | |
| VMA-9041 | 1 | 1/2 | 1/4-20 | 1/2 | |
| VMA-9042 | 1 | 5/8 | 5/16-18 | 5/8 | |
| VMA-9043 | 1 | 5/8 | 5/16-18 | 1/2 | |
| VMA-9044 | 1 | 5/8 | 5/16-18 | 3/4 | |
| VMA-9045 | 1 | 5/8 | 5/16-18 | 1 | |
| VMA-9046 | 1 | 5/8 | 1/4-20 | 1/2 | |
| VMA-9047 | 1 | 5/8 | 1/4-20 | 3/4 | |
| VMA-9048 | 1 | 3/4 | 5/16-18 | 5/8 | |
| VMA-9049 | 1 | 3/4 | 5/16-18 | 1/2 | |
| VMA-9050 | 1 | 3/4 | 5/16-18 | 3/4 | |
| VMA-9051 | 1 | 3/4 | 5/16-18 | 1-1/4 | |
| VMA-9052 | 1 | 3/4 | 1/4-20 | 1/2 | |
| VMA-9053 | 1 | 3/4 | 1/4-20 | 3/8 | |
| VMA-9054 | 1 | 1 | 5/16-18 | 5/8 | |
| VMA-9055 | 1 | 5/8 | 1/4-20 | 3/4 | |
| VMA-9056 | 1 | 3/4 | 5/16-18 | 5/8 | |
| VMA-9057 | 1 | 3/4 | 5/16-18 | 1/2 | |
| VMA-9058 | 1 | 3/4 | 5/16-18 | 3/4 | |
| VMA-9059 | 1 | 3/4 | 5/16-18 | 1-1/4 | |
| VMA-9060 | 1 | 3/4 | 1/4-20 | 1/2 | |
| VMA-9061 | 1 | 3/4 | 1/4-20 | 3/8 | |
| VMA-9062 | 1 | 1 | 5/16-18 | 5/8 | |
| VMA-9063 | 1 | 1 | 5/16-18 | 1 | |
| VMA-9064 | 1 | 1 | 5/16-18 | 1/4 | |
| VMA-9065 | 1 | 1 | 5/16-18 | 1/8 | |
| VMA-9066 | 1 | 1 | 1/4-20 | 1/2 | |
| VMA-9067 | 1-3/16 | 1-5/8 | 5/16-18 | 1 | |
| VMA-9068 | 1-1/4 | 3/4 | 1/4-20 | 1/2 | |
| VMA-9069 | 1-1/4 | 3/4 | 1/4-20 | 3/8 | |
| VMA-9070 | 1-1/4 | 3/4 | 5/16-18 | 1/2 | |
| VMA-9071 | 1-1/4 | 3/4 | 5/16-18 | 3/4 | |
| VMA-9072 | 1-1/4 | 3/4 | 3/8-16 | 3/4 | |
| VMA-9073 | 1-1/4 | 3/4 | 3/8-16 | 1-1/2 | |
| VMA-9074 | 1-1/4 | 1 | 5/16-18 | 1-1/4 | |
| VMA-9075 | 1-1/4 | 1 | 5/16-18 | 7/8 | |
| VMA-9076 | 1-1/4 | 1-1/4 | 5/16-18 | 3/4 | |
| VMA-9077 | 1-1/4 | 1-3/8 | 3/8-16 | 3/4 | |
| VMA-9078 | 1-1/4 | 3/4 | 5/16-18 | 1-1/4 | |
| VMA-9079 | 1-1/2 | 1/2 | 3/8-16 | 1 | |
| VMA-9080 | 1-1/2 | 3/4 | 5/16-18 | 5/8 | |
| VMA-9081 | 1-1/2 | 3/4 | 3/8-16 | 3/4 | |
| VMA-9082 | 1/4 | 9/32 | 4-40 | 5/32 | |
| VMA-9083 | .375 | .400 | 8-32 | 3/16 | |
| VMA-9084 | .375 | 1/2 | 8-32 | 3/4 | |
| VMA-9085 | 7/16 | .775 | 6-32 | 3/8 | |
| VMA-9086 | 1/2 | 1/4 | M5 | 1/2 | |
| VMA-9087 | 1/2 | 1/4 | M4 | 20MM | |
| VMA-9088 | 1/2 | 1/4 | M5 | 1/2 | |
| VMA-9089 | 1/2 | 1/4 | 10-32 | 1/2 | |
| VMA-9090 | 1/2 | 3/8 | 10-32 | 1/2 | |
| VMA-9091 | 1/2 | .800 | 6-32 | 1/4 | |
| VMA-9092 | .590 | .310 | 10-32 | 1 | |
| VMA-9093 | 5/8 | 5/8 | 8-32 | 1/2 | |
| VMA-9094 | 3/4 | 3/8 | 1/4-20 | 1/2 | |
| VMA-9095 | 3/4 | 3/8 | 1/4-20 | 7/8 | |
| VMA-9096 | 3/4 | 3/8 | 1/4-20 | 1 | |
| VMA-9097 | 3/4 | 3/8 | 10-32 | 1/4 | |
| VMA-9098 | 3/4 | 7/16 | 8-32 | 3/8 | |
| VMA-9099 | 3/4 | 1/2 | 1/4-20 | 1/2 | |
| VMA-9127 | 1-1/2 | 1 | 3/8-16 | 5/8 | |
| VMA-9128 | 7/16 | 7/16 | 6-32 | 1/4 | |
| VMA-9130 | 9/16 | 1/2 | 8-32 | 3/8 | |
| VMA-9131 | 1-1/2 | 1 | 5/16-18 | 5/8 | |
| VMA-9132 | 1 | 3/4 | 1/4-20 | 1/2 | |
| VMA-9133 | 3/4 | 5/8 | 10-32 | 3/8 | |
| VMA-9135 | 1 | 1 | 5/16-18 | 5/8 | |
| VMA-9136 | 1-1/4 | 3/4 | 5/16-18 | 5/8 | |
| VMA-9137 | 1 | 5/8 | 5/16-18 | 5/8 | |
| VMA-9144 | 1 | 3/8 | 5/16-18 | 1-1/4 | |
| VMA-9300 | 3/4 | 1/2 | 8-32 | 1/2 | |
| VMA-9301 | 3/4 | 1/2 | 8-32 | 1/4 | |
| VMA-9302 | 3/4 | 1/2 | 8-32 | 1/4 | |
| VMA-9303 | 3/4 | 5/8 | 5/16-18 | 5/8 | |
| VMA-9304 | 3/4 | 5/8 | 5/16-18 | 7/8 | |
| VMA-9305 | 3/4 | 5/8 | 1/4-20 | 1/2 | |
| VMA-9306 | 3/4 | 3/4 | 1/4-20 | 1 | |
| VMA-9307 | 3/4 | 3/4 | 8-32 | 1/2 | |
| VMA-9308 | 20MM | 30MM | 5/16-18 | 5/8 | |
| VMA-9309 | 1 | 1/4 | 5/16-18 | 7/8 | |
| VMA-9310 | 1 | 1/4 | 1/4-20 | 1 | |
| VMA-9311 | 1 | 3/8 | 5/16-18 | 3/4 | |
| VMA-9312 | 1 | 3/8 | 5/16-18 | 2 | |
| VMA-9313 | 1 | 3/8 | 5/16-18 | 3/8 | |
| VMA-9314 | 1 | 1/2 | 5/16-18 | 1 | |
| VMA-9315 | 1 | 1/2 | 5/16-18 | 1-1/4 | |
| VMA-9316 | 1 | 1/2 | M8 | 1 | |
| VMA-9317 | 1 | 1/2 | 1/4-20 | 5/8 | |
| VMA-9319 | 1 | 1/2 | 1/4-20 | 1/8 | |
| VMA-9320 | 1 | 1/2 | 1/4-20 | 1.63 | |
| VMA-9321 | 1 | 1/2 | 10-24 | 3/8 | |
| VMA-9322 | 1 | 1/2 | 10-32 | 3/8 | |
| VMA-9323 | 1 | 9/16 | 5/16-18 | 1-1/4 | |
| VMA-9324 | 1 | 9/16 | 1/4-20 | 5/8 | |
| VMA-9325 | 1 | 5/8 | 5/16-18 | 1-1/4 | |
| VMA-9326 | 1 | 5/8 | M8 | 1/2 | |
| VMA-9327 | 1 | 5/8 | M8 | 1 | |
| VMA-9328 | 1 | 5/8 | M6-1 | 5/8 | |
| VMA-9329 | 1 | 5/8 | M6-1 | 1/2 | |
| VMA-9330 | 1 | 3/4 | M8 | 1 | |
| VMA-9331 | 1 | 3/4 | 1/4-20 | 3/4 | |
| VMA-9332 | 1 | 3/4 | 1/4-20 | 5/8 | |
| VMA-9333 | 1 | 3/4 | 1/4-20 | 1 | |
| VMA-9334 | 1 | 3/4 | 1/4-20 | 1/4 | |
| VMA-9335 | 1 | 3/4 | 10-32 | 1/2 | |
| VMA-9336 | 1 | .850 | 1/4-20 | 1/2 | |
| VMA-9337 | 1 | 1 | 5/16-18 | 1-1/2 | |
| VMA-9338 | 1 | 1 | 1/4-20 | 3/4 | |
| VMA-9339 | 1 | 1 | 1/4-20 | 5/8 | |
| VMA-9340 | 1 | 1 | 1/4-20 | 5/16 | |
| VMA-9341 | 1 | 1-1/2 | 5/16-18 | 1-1/4 | |
| VMA-9342 | 1 | 1-1/2 | 5/16-18 | 3/8 | |
| VMA-9343 | 1-1/4 | .188 | 5/16-18 | 5/8 | |
| VMA-9344 | 1-1/4 | 1-3/8 | 5/16-18 | 5/8 | |
| VMA-9345 | 1-1/4 | 3/4 | 5/16-18 | 5/8 | |
| VMA-9346 | 1-1/4 | 3/4 | 5/16-18 | 1/2 | |
| VMA-9347 | 1-1/4 | 1 | 5/16-18 | 1-1/2 | |
| VMA-9348 | 1-1/4 | 1 | 5/16-18 | 5/8 | |
| VMA-9349 | 1-1/4 | 1-1/4 | 5/16-18 | 5/8 | |
| VMA-9350 | 1-1/4 | 1-1/4 | 3/8-16 | 1 | |
| VMA-9351 | 1-3/8 | 1 | 1/4-20 | 1/2 | |
| VMA-9352 | 1-3/8 | 1 | 3/16-16 | 5/8 | |
| VMA-9353 | 1-1/2 | 1/2 | 1/4-20 | 1 | |
| VMA-9354 | 1-1/2 | 1/2 | 5/16-24 | 3/4 | |
| VMA-9355 | 1-1/2 | 1/2 | 5/16-18 | 5/8 | |
| VMA-9356 | 1-1/2 | 1/2 | 5/16-18 | 1-1/4 | |
| VMA-9357 | 1-1/2 | 3/4 | 5/16-18 | 5/8 | |
| VMA-9358 | 1-1/2 | 3/4 | 1/4-20 | 1/2 | |
| VMA-9359 | 1-1/2 | 3/4 | M6 | 1/2 | |
| VMA-9360 | 1-1/2 | 3/4 | 5/16-18 | 1 | |
| VMA-9361 | 1-1/2 | 3/4 | 5/16-18 | 3/8 | |
| VMA-9362 | 1-1/2 | 3/4 | 5/16-18 | 1-1/4 | |
| VMA-9363 | 1-1/2 | 3/4 | 3/8-16 | 5/8 | |
| VMA-9364 | 1-1/2 | 3/4 | 3/8-16 | 1 | |
| VMA-9365 | 1-1/2 | 1 | 5/16-24 | 5/8 | |
| VMA-9366 | 1-1/2 | 1 | 5/16-18 | 1 | |
| VMA-9367 | 1-1/2 | 1 | 5/16-18 | 7/8 | |
| VMA-9368 | 1-1/2 | 1 | 5/16-18 | 3/8 | |
| VMA-9369 | 1-1/2 | 1 | 5/16-24 | 3/4 | |
| VMA-9370 | 1-1/2 | 1 | 5/16-18 | 5/8 | |
| VMA-9371 | 1-1/2 | 1 | 5/16-18 | 9/16 | |
| VMA-9372 | 1-1/2 | 1 | 5/16-18 | 1-1/4 | |
| VMA-9373 | 1-1/2 | 1 | 5/16-24 | 1/2 | |
| VMA-9374 | 1-1/2 | 1 | 5/16-18 | 1-1/4 | |
| VMA-9375 | 1-1/2 | 1 | 5/16-18 | 5/8 | |
| VMA-9376 | 1-1/2 | 1 | 3/8-16 | 5/8 | |
| VMA-9377 | 1-1/2 | 1 | 3/8-16 | 1 | |
| VMA-9378 | 1-1/2 | 1 | 3/8-16 | 2 | |
| VMA-9379 | 1-1/2 | 1-3/8 | 3/8-16 | 3/4 | |
| VMA-9380 | 1-1/2 | 1-1/2 | 5/16-18 | 3/4 | |
| VMA-9381 | 1-1/2 | 1-1/2 | 3/8-16 | 3/4 | |
| VMA-9382 | 1-1/2 | 1-1/2 | 3/8-16 | 1 | |
| VMA-9383 | 1.65 | 1.30 | M6-1 | 5/8 | |
| VMA-9384 | 1.65 | 1.30 | M6 | 1/2 | |
| VMA-9385 | 2 | 3/4 | 3/8-16 | 5/8 | |
| VMA-9386 | 2 | 3/4 | 3/8-16 | 1-1/8 | |
| VMA-9387 | 2 | 3/4 | 3/8-16 | 5/8 | |
| VMA-9388 | 2 | 3/4 | 1/2-13 | 1.910 | |
| VMA-9389 | 2 | 1 | 3/8-16 | 1-1/8 | |
| VMA-9390 | 2 | 1 | 3/8-16 | 5/8 | |
| VMA-9391 | 2 | 1-5/8 | 3/8-16 | 1 | |
| VMA-9392 | 2 | 1-5/8 | 3/8-16 | 5/8 | |
| VMA-9393 | 2 | 1-5/8 | 1/2-13 | 1/4 | |
| VMA-9394 | 2 | 2 | 3/8-16 | 1-1/8 | |
| VMA-9395 | 10MM | 10MM | 8-32 | 3/8 | |
| VMA-9396 | 19MM | 19MM | 1/4-20 | 3/4 | |
| VMA-9397 | .375 | 1/4 | M3 | 6MM | |
| VMA-9398 | 9/16 | 1/2 | M6 | 12MM | |
| VMA-9399 | .590 | .310 | M4 | 10MM | |
| VMA-9400 | 5/8 | 1-1/4 | M6 | 10MM | |
| VMA-9401 | 3/4 | 1/2 | M6 | 13MM | |
| VMA-9402 | 3/4 | 1/2 | M6 | 25MM | |
| VMA-9403 | 3/4 | 1/2 | M6 | 35MM | |
| VMA-9404 | 19MM | 10MM | M6 | 13MM | |
| VMA-9405 | 3/4 | 3/4 | M6 | 13MM | |
| VMA-9406 | 3/4 | 3/4 | M6 | 12.7MM | |
| VMA-9407 | 19MM | 19MM | M6-1 | 13MM | |
| VMA-9408 | 1 | 3/8 | M6 | 12MM | |
| VMA-9409 | 1 | 1/2 | M8 | 12.3MM | |
| VMA-9410 | 1 | 1/2 | M6 | 12MM | |
| VMA-9411 | 1 | 1/2 | M6 | 18MM | |
| VMA-9412 | 1 | 5/8 | M8 | 12MM | |
| VMA-9413 | 4 | 5/8 | M8-1.25 | 12MM | |
| VMA-9414 | 1 | 5/8 | M8-1.25 | 12.3 | |
| VMA-9415 | 1 | 5/8 | M6 | 12.7 | |
| VMA-9416 | 1 | 3/4 | M8 | 19MM | |
| VMA-9417 | 1 | 3/4 | M6 | 15.8MM | |
| VMA-9418 | 1-1/4 | 1-3/8 | M8 | 12MM | |
| VMA-9419 | 1-1/4 | 3/4 | M8-1.25 | 25MM | |
| VMA-9420 | 1-1/4 | 3/4 | M8-1.25 | 12MM | |
| VMA-9421 | 40MM | 30MM | M8 | 20MM | |
| VMA-9422 | 1.65 | 1.30 | M6-1 | 10MM |
