Vibration Isolation Mounts

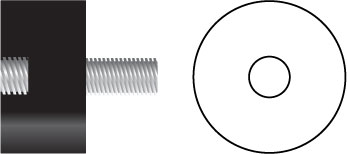

2000 Series
Please click on the SRG # for the product to view the product page.
| Add | SRG # | OD | THK | A STUD Thread Size |
A STUD Thread Length |
INSERT Thread Size |
|---|---|---|---|---|---|---|
| + | VMA-2101 | .281 | 9/32 | 4-40 | 3/16 | 4-40 |
| + | VMA-2103 | 1/2 | 9/16 | 8-32 | 3/8 | 8/32 |
| + | VMA-2105 | 1/2 | 9/16 | 10-32 | 3/8 | 10-32 |
| + | VMA-2107 | 1 | 5/8 | 1/4-20 | 1/2 | 1/4-20 |
| + | VMA-2109 | 1 | 5/8 | 1/4-20 | 5/8 | 1/4-20 |
| + | VMA-2111 | 1 | 3/4 | 5/16-18 | 3/8 | 5/16-18 |
| + | VMA-2113 | 1 | 3/4 | 1/4-20 | 3/4 | 1/4-20 |
| + | VMA-2115 | 1 | 3/4 | 1/4-20 | 3/8 | 1/4-20 |
| + | VMA-2117 | 1-1/2 | 1 | 5/16-18 | 5/8 | 5/16-18 |
| + | VMA-2119 | 1-1/2 | 1 | 5/16-18 | 1 | 5/16-18 |
| + | VMA-2121 | 1-1/2 | 1 | 5/16-18 | 7/8 | 5/16-18 |
| + | VMA-2123 | 1/4 | 9/32 | 4-40 | 3/16 | 4-40 |
| + | VMA-2125 | .315 | .236 | 4-40 | 3/16 | 4-40 |
| + | VMA-2127 | .315 | .236 | 4-40 | 1/4 | 4-40 |
| + | VMA-2129 | .315 | .236 | 4-40 | 3/8 | 4-40 |
| + | VMA-2131 | .315 | .400 | 4-40 | 1/4 | 4-40 |
| + | VMA-2133 | .315 | .400 | 6-32 | 3/8 | 6-32 |
| + | VMA-2135 | .375 | 1/2 | 4-40 | 3/16 | 4-40 |
| + | VMA-2137 | .375 | 1/2 | 6-32 | 3/16 | 6-32 |
| + | VMA-2139 | .375 | 1/2 | 6-32 | 3/8 | 6-32 |
| + | VMA-2141 | .375 | 1/2 | 8-32 | 3/8 | 8-32 |
| + | VMA-2143 | .375 | 1/2 | 8-32 | 1/4 | 8-32 |
| + | VMA-2145 | .375 | 1/2 | 8-32 | 1/2 | 8-32 |
| + | VMA-2147 | .375 | 1/2 | 8-32 | 3/8 | 8-32 |
| + | VMA-2149 | .375 | 1/2 | 1/4-20 | 3/8 | 1/4-20 |
| + | VMA-2151 | .375 | 1/2 | 10-32 | 1/2 | 10-32 |
| + | VMA-2153 | .375 | 5/8 | 6-32 | 1/4 | 6-32 |
| + | VMA-2155 | .375 | 5/8 | 8-32 | 3/8 | 8-32 |
| + | VMA-2157 | 5/16 | 3/8 | 6-32 | 3/8 | 6-32 |
| + | VMA-2159 | 7/16 | 1/4 | 6-32 | 1/8 | 6-32 |
| + | VMA-2161 | 7/16 | 7/16 | 4-40 | 1/4 | 4-40 |
| + | VMA-2163 | 7/16 | 7/16 | 6-32 | 1/4 | 6-32 |
| + | VMA-2165 | 7/16 | 7/16 | 8-32 | 1/4 | 8-32 |
| + | VMA-2167 | 7/16 | 7/16 | 4-40 | 3/8 | 6-32 |
| + | VMA-2169 | 7/16 | 1/2 | 6-32 | 3/8 | 6-32 |
| + | VMA-2171 | 7/16 | 1/2 | 8-32 | 3/8 | 8-32 |
| + | VMA-2173 | 7/16 | 1/2 | 8-32 | 1/4 | 8-32 |
| + | VMA-2175 | 7/16 | .775 | 6-32 | 1/4 | 6-32 |
| + | VMA-2177 | 7/16 | .775 | 6-32 | 3/8 | 6-32 |
| + | VMA-2179 | 7/16 | 7/16 | 6-32 | 1/4 | 6-32 |
| + | VMA-2181 | 7/16 | 7/16 | 6-32 | 3/16 | 6-32 |
| + | VMA-2183 | 7/16 | 7/16 | 6-32 | 1/8 | 6-32 |
| + | VMA-2185 | 7/16 | 7/16 | 8-32 | 1/4 | 8-32 |
| + | VMA-2187 | 1/2 | 1/2 | 6-32 | 1/4 | 6-32 |
| + | VMA-2189 | 1/2 | 1/2 | 6-32 | 5/16 | 6-32 |
| + | VMA-2191 | 1/2 | 1/2 | 6-32 | 3/8 | 6-32 |
| + | VMA-2193 | 1/2 | 1/2 | 6-32 | 5/8 | 6-32 |
| + | VMA-2195 | 1/2 | 1/2 | 8-32 | 1/4 | 8-32 |
| + | VMA-2197 | 1/2 | 1/2 | 8-32 | 1/2 | 8-32 |
| + | VMA-2199 | 1/2 | 1/2 | 10-32 | 3/8 | 10-32 |
| + | VMA-2201 | 1 | 3/4 | 1/4-20 | 1/2 | 1/4-20 |
| + | VMA-2202 | 1 | 3/4 | 1/4-20 | 1/2 | 1/4-20 |
| + | VMA-2203 | 1-1/2 | 1-3/8 | 3/8-16 | 5/8 | 3/8-16 |
| + | VMA-2278 | 1-1/2 | 1-3/8 | 3/8-16 | 5/8 | 3/8-16 |
| + | VMA-2281 | 7/16 | 7/16 | 6-32 | 1/4 | 6-32 |
| + | VMA-2282 | 1 | 3/4 | 5/16-18 | 1/2 | 5/16-18 |
| + | VMA-2285 | 7/16 | 7/16 | 8-32 | 1/4 | 8-32 |
| + | VMA-2286 | 1-1/4 | 1 | 5/16-18 | 5/8 | 5/16-18 |
| + | VMA-2287 | 9/16 | 1/2 | 8-32 | 1/4 | 8-32 |
| + | VMA-2288 | 9/16 | 1/2 | 10-32 | 3/8 | 10-32 |
| + | VMA-2289 | 9/16 | 1/2 | 8-32 | 3/8 | 8-32 |
| + | VMA-2290 | 1 | 1 | 1/4-20 | 1/2 | 1/4-20 |
| + | VMA-2291 | 3/4 | 5/8 | 10-32 | 3/8 | 10-32 |
| + | VMA-2292 | 1 | 3/4 | 1/4-20 | 1/2 | 1/4-20 |
| + | VMA-2297 | 1 | 1-1/16 | 1/4-20 | 3/8 | 1/4-20 |
| + | VMA-2304 | 1/2 | 9/16 | 6-32 | 1/4 | 6-32 |
| + | VMA-2306 | 1/2 | 9/16 | 8-32 | 5/16 | 8-32 |
| + | VMA-2308 | 1/2 | 5/8 | 6-32 | 1/4 | 6-32 |
| + | VMA-2310 | 1/2 | 5/8 | 10-32 | 5/8 | 10-32 |
| + | VMA-2312 | 1/2 | 1 | 8-32 | 1/4 | 8-32 |
| + | VMA-2314 | .590 | .310 | 6-32 | 3/8 | 6-32 |
| + | VMA-2316 | 9/16 | 1/2 | 6-32 | 3/8 | 6-32 |
| + | VMA-2318 | 9/16 | 1/2 | 8-32 | 3/8 | 8-32 |
| + | VMA-2320 | 9/16 | 1/2 | 8-32 | 1/4 | 8-32 |
| + | VMA-2322 | 9/16 | 1/2 | 8-32 | 1/2 | 8-32 |
| + | VMA-2324 | 9/16 | 1/2 | M5 | 1/4 | M5 |
| + | VMA-2326 | 9/16 | 1/2 | 6-32 | 1/4 | 6-32 |
| + | VMA-2328 | 9/16 | 1/2 | 8-32 | 3/8 | 8-32 |
| + | VMA-2330 | 9/16 | 1/2 | 10-32 | 3/8 | 10-32 |
| + | VMA-2332 | 9/16 | 1/2 | 10-32 | 5/8 | 10-32 |
| + | VMA-2334 | 9/16 | 1/2 | 10-24 | 3/8 | 10-24 |
| + | VMA-2336 | 9/16 | 1/2 | 10-32 | 3/8 | 10-32 |
| + | VMA-2338 | .590 | .310 | 6-32 | 3/16 | 6-32 |
| + | VMA-2340 | .590 | .310 | 8-32 | 3/8 | 8-32 |
| + | VMA-2342 | .590 | .310 | 8-32 | 5/8 | 8-32 |
| + | VMA-2344 | .590 | .310 | 8-32 | 5/16 | 8-32 |
| + | VMA-2346 | 5/8 | 5/8 | 1/4-20 | 1/2 | 1/4-20 |
| + | VMA-2348 | 5/8 | 5/8 | 1/4-20 | 3/8 | 1/4-20 |
| + | VMA-2350 | 5/8 | 5/8 | 1/4-20 | 9/16 | 1/4-20 |
| + | VMA-2352 | 5/8 | 5/8 | 1/4-20 | 1/2 | 8-32 |
| + | VMA-2354 | 5/8 | 5/8 | 1/4-20 | 5/8 | 8-32 |
| + | VMA-2356 | 5/8 | 5/8 | 6-32 | 1/4 | 6-32 |
| + | VMA-2358 | 5/8 | 5/8 | 8-32 | 3/8 | 8-32 |
| + | VMA-2360 | 5/8 | 5/8 | 10-32 | 1/2 | 10-32 |
| + | VMA-2362 | 5/8 | 5/8 | 10-32 | 1/4 | 10-32 |
| + | VMA-2364 | 5/8 | 5/8 | 10-32 | 3/8 | 10-32 |
| + | VMA-2366 | 5/8 | 5/8 | 10-32 | 5/8 | 10-32 |
| + | VMA-2368 | 3/4 | 3/8 | 1/4-20 | 3/4 | 1/4-20 |
| + | VMA-2370 | 3/4 | 1/2 | 1/4-20 | 1/2 | 1/4-20 |
| + | VMA-2372 | 3/4 | 5/8 | 10-32 | 3/8 | 10-32 |
| + | VMA-2374 | 3/4 | 5/8 | 1/4-20 | 3/8 | 1/4-20 |
| + | VMA-2376 | 3/4 | 5/8 | 1/4-20 | 3/8 | 8-32 |
| + | VMA-2378 | 3/4 | 5/8 | 6-32 | 1/4 | 6-32 |
| + | VMA-2380 | 3/4 | 5/8 | 8-32 | 1/4 | 6-32 |
| + | VMA-2382 | 3/4 | 5/8 | 10-32 | 3/8 | 6-32 |
| + | VMA-2384 | 3/4 | 5/8 | 10-32 | 1/2 | 8-32 |
| + | VMA-2386 | 3/4 | 5/8 | 10-32 | 3/8 | 10-32 |
| + | VMA-2388 | 3/4 | 5/8 | 10-32 | 5/8 | 10-32 |
| + | VMA-2390 | 3/4 | 5/8 | 10-32 | 1/4 | 10-32 |
| + | VMA-2392 | 3/4 | 5/8 | M5.8 | 1/2 | M5 |
| + | VMA-2394 | 3/4 | 3/4 | 10-32 | 1/2 | 8-32 |
| + | VMA-2396 | 3/4 | 3/4 | 10-32 | 3/8 | 10-32 |
| + | VMA-2398 | 7/8 | 1/2 | 8-32 | 3/8 | 8-32 |
| + | VMA-2500 | 1 | 1-1/16 | 1/4-20 | 1/2 | 1/4-20 |
| + | VMA-2502 | 1 | 1-1/16 | 1/4-20 | 3/8 | 1/4-20 |
| + | VMA-2504 | 1 | 1-1/16 | 1/4-20 | 3/8 | 1/4-20 |
| + | VMA-2506 | 1 | 3/8 | 1/4-20 | 1/2 | 10-32 |
| + | VMA-2508 | 1 | 3/8 | 1/4-20 | 3/8 | 10-32 |
| + | VMA-2510 | 1 | 1/2 | 1/4-20 | 1/2 | 1/4-20 |
| + | VMA-2512 | 1 | 1/2 | 1/4-20 | 3/8 | 1/4-20 |
| + | VMA-2514 | 1 | 1/2 | 1/4-20 | 1/4 | 1/4-20 |
| + | VMA-2516 | 1 | 3/8 | 1/4-20 | 3/8 | 1/4-20 |
| + | VMA-2518 | 1 | 3/8 | 1/4-20 | 3/8 | 10-32 |
| + | VMA-2520 | 1 | 1/2 | 1/4-20 | 1/8 | 1/4-20 |
| + | VMA-2522 | 1 | 1/2 | 10-32 | 1/4-20 | 3/8 |
| + | VMA-2524 | 1 | 9/16 | 5/16-18 | 1-1/4 | 5/16-18 |
| + | VMA-2526 | 1 | 5/8 | 10-32 | 3/8 | 10-32 |
| + | VMA-2528 | 1 | 5/8 | 1/4-20 | 3/8 | 1/4-20 |
| + | VMA-2530 | 1 | 3/4 | 10-32 | 3/8 | 10-32 |
| + | VMA-2532 | 1 | 3/4 | M5.8 | 1/2 | M5 |
| + | VMA-2534 | 1 | 3/4 | 5/16-18 | 5/8 | 5/16-18 |
| + | VMA-2536 | 1 | 3/4 | 5/16-18 | 1/2 | 5/16-18 |
| + | VMA-2538 | 1 | 3/4 | 5/16-18 | 3/4 | 5/16-18 |
| + | VMA-2540 | 1 | 3/4 | M8 | 1 | M8 |
| + | VMA-2542 | 1 | 3/4 | 1/4-20 | 3/4 | 1/4-20 |
| + | VMA-2544 | 1 | 3/4 | M6 | 5/8 | M6 |
| + | VMA-2546 | 1 | 1-1/2 | 1/4-20 | 5/8 | 1/4-20 |
| + | VMA-2548 | 1.010 | 1.083 | 1/4-20 | 1/2 | 1/4-20 |
| + | VMA-2550 | 1.015 | 1.030 | 1/4-20 | 3/8 | 1/4-20 |
| + | VMA-2552 | 1-1/4 | 3/4 | 5/16-18 | 5/8 | 5/16-18 |
| + | VMA-2554 | 1-1/4 | 3/4 | 5/16-18 | 1/2 | 5/16-18 |
| + | VMA-2556 | 1-1/4 | 3/4 | M8 | 1 | M8 |
| + | VMA-2558 | 1-1/4 | 1 | 5/16-18 | 5/8 | 5/16-18 |
| + | VMA-2560 | 1-1/4 | 1 | 5/16-18 | 1/2 | 5/16-18 |
| + | VMA-2562 | 1-1/4 | 1 | 3/8-16 | 5/8 | 3/8-16 |
| + | VMA-2564 | 1-1/4 | 1-1/4 | 5/16-18 | 5/8 | 5/16-18 |
| + | VMA-2566 | 1-1/4 | 1-1/4 | 5/16-18 | 1/2 | 5/16-18 |
| + | VMA-2568 | 1-1/2 | 1-3/8 | 3/8-16 | 5/8 | 3/8-16 |
| + | VMA-2570 | 1-3/8 | 1 | 5/16-18 | 5/8 | 5/16-18 |
| + | VMA-2572 | 1-1/2 | 1 | 5/16-18 | 1/2 | 5/16-18 |
| + | VMA-2574 | 1-1/2 | 1 | 5/16-18 | 7/8 | 5/16-18 |
| + | VMA-2576 | 1-1/2 | 1 | 5/16-18 | 9/16 | 5/16-18 |
| + | VMA-2578 | 1-1/2 | 1 | 3/8-16 | 3/4 | 3/8-16 |
| + | VMA-2580 | 1-1/2 | 1 | 3/8-16 | 5/8 | 3/8-16 |
| + | VMA-2582 | 1-1/2 | 1 | 5/16-18 | 1/2 | 1/4-20 |
| + | VMA-2584 | 1-1/2 | 1 | 3/8-16 | 5/8 | 1/4-20 |
| + | VMA-2586 | 1-1/2 | 1-3/8 | 3/8-16 | 3/4 | 3/8-16 |
| + | VMA-2588 | 1-1/2 | 1-1/2 | 3/8-16 | 1 | 3/8-16 |
| + | VMA-2590 | 2 | 3/4 | 3/8-16 | 5/8 | 3/8-16 |
| + | VMA-2592 | 2 | 3/4 | 3/8-16 | 1-1/8 | 3/8-16 |
| + | VMA-2594 | 2 | 1-5/8 | 3/8-16 | 1-1/4 | 3/8-16 |
| + | VMA-2596 | 2 | 1-5/8 | 3/8-16 | 5/8 | 3/8-16 |
| + | VMA-2598 | 2 | 1.191 | 5/16-18 | 7/8 | 5/16-18 |
| + | VMA-2600 | 2 | 2 | 3/8-16 | 1/4 | 3/8-16 |
| + | VMA-2602 | 1/4 | 9/32 | M3 | 6MM | M3 |
| + | VMA-2604 | .281 | 9/32 | M3 | 6MM | M3 |
| + | VMA-2606 | .315 | .236 | M3 | 6MM | M3 |
| + | VMA-2608 | .3125 | .187 | M3 | 3MM | M3 |
| + | VMA-2610 | 10MM | 10MM | 6-32 | 1/4 | 6-32 |
| + | VMA-2612 | 10MM | 10MM | M4 | 10MM | M4 |
| + | VMA-2614 | 10MM | 10MM | M4 | 6MM | M4-7 |
| + | VMA-2616 | 10MM | 10MM | M4 | 6MM | 8-32 |
| + | VMA-2618 | 10MM | 10MM | M4 | 10MM | M4 |
| + | VMA-2620 | .375 | 1/2 | M4 | 10MM | M4 |
| + | VMA-2622 | .375 | 1/2 | M6 | 13MM | M6 |
| + | VMA-2624 | 5/16 | 3/8 | M3 | 6MM | M3 |
| + | VMA-2626 | 5/16 | 3/8 | M3 | 3MM | M3 |
| + | VMA-2628 | 7/16 | 1/2 | M4 | 6MM | M4 |
| + | VMA-2630 | 7/16 | 7/16 | M3 | 6MM | 6-32 |
| + | VMA-2632 | 1/2 | 3/8 | M4-7 | 8MM | M4-7 |
| + | VMA-2634 | 1/2 | 9/16 | M5-.8 | 1/2 | M5 |
| + | VMA-2636 | 9/16 | 1/2 | M4 | 10MM | M4 |
| + | VMA-2638 | 9/16 | 1/2 | M4 | 6MM | M4 |
| + | VMA-2640 | 9/16 | 1/2 | M4 | 10MM | M4 |
| + | VMA-2642 | .590 | .310 | M4 | 8MM | M4 |
| + | VMA-2644 | 5/8 | 5/8 | M6 | 12.7MM | M6 |
| + | VMA-2646 | 5/8 | 5/8 | M6 | 10MM | M6 |
| + | VMA-2648 | 5/8 | 5/8 | M4 | 10MM | M4 |
| + | VMA-2650 | 3/4 | 1/2 | M6 | 10MM | M6 |
| + | VMA-2652 | 3/4 | 5/8 | M6 | 12.7MM | M6 |
| + | VMA-2654 | 20MM | 25MM | M6 | 18MM | M6 |
| + | VMA-2656 | 1 | 1/2 | M6 | 12MM | M6 |
| + | VMA-2658 | 1 | 3/4 | M6 | 5/8 | M6 |
| + | VMA-2660 | 1 | 3/4 | M8 | 12MM | M8 |
| + | VMA-2662 | 1 | 1 | M8 | 25MM | M8 |
| + | VMA-2664 | 40MM | 30MM | 5/16-18 | 7/8 | 5/16-18 |
| + | VMA-2666 | 40MM | 30MM | 3/8-16 | 1-1/8 | 3/8-16 |
