Vibration Isolation Mounts

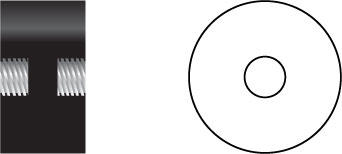

3000 Series
Please click on the SRG # for the product to view the product page.
| Add | SRG # | OD | THK | INSERT A Thread Size |
INSERT B Thread Size |
|---|---|---|---|---|---|
| + | VMA-3100 | 7/16 | 7/16 | 6-32 | 6-32 |
| + | VMA-3168 | 1 | 1 | 5/16-18 | 5/16-18 |
| + | VMA-3171 | 7/16 | 7/16 | 6-32 | 6-32 |
| + | VMA-3172 | 1-1/2 | 1-3/8 | 3/8-16 | 3/8-16 |
| + | VMA-3173 | 7/16 | 7/16 | 8-32 | 8-32 |
| + | VMA-3174 | 9/16 | 1/2 | 8-32 | 8-32 |
| + | VMA-3175 | 9/16 | 1/2 | 10-32 | 10-32 |
| + | VMA-3176 | 3/4 | 5/8 | 10-32 | 10-32 |
| + | VMA-3178 | 1 | 1 | 1/4-20 | 1/4-20 |
| + | VMA-3179 | 1-1/4 | 1 | 5/16-18 | 5/16-18 |
| + | VMA-3300 | .375 | 1/2 | 4-40 | 4-40 |
| + | VMA-3302 | 7/16 | 7/16 | M3 | M3 |
| + | VMA-3304 | 7/16 | 7/16 | 6-32 | 6-32 |
| + | VMA-3306 | 7/16 | 7/16 | 8-32 | 8-32 |
| + | VMA-3308 | 7/16 | 1/2 | 8-32 | 8-32 |
| + | VMA-3310 | .390 | 1/2 | 8-32 | 8-32 |
| + | VMA-3312 | 1/2 | .800 | 8-32 | 8-32 |
| + | VMA-3314 | 1/2 | 1/2 | 6-32 | 6-32 |
| + | VMA-3316 | 1/2 | 1/2 | 8-32 | 8-32 |
| + | VMA-3318 | 1/2 | 9/16 | 10-32 | 10-32 |
| + | VMA-3320 | 1/2 | .800 | 8-32 | 8-32 |
| + | VMA-3322 | 9/16 | 1/2 | 8-32 | 8-32 |
| + | VMA-3324 | 9/16 | 1/2 | 10-32 | 10-32 |
| + | VMA-3326 | 9/16 | 1/2 | 10-32 | 8-32 |
| + | VMA-3328 | 5/8 | 1/2 | 8-32 | 8-32 |
| + | VMA-3330 | 5/8 | 5/8 | 1/4-20 | 1/4-20 |
| + | VMA-3332 | 5/8 | 5/8 | 10-32 | 10-32 |
| + | VMA-3334 | 5/8 | 1-1/4 | 10-32 | 10-32 |
| + | VMA-3336 | 5/8 | 1-1/4 | 1/4-20 | 1/4-20 |
| + | VMA-3338 | .630 | 5/8 | 8-32 | 8-32 |
| + | VMA-3340 | 3/4 | 1/2 | 8-32 | 8-32 |
| + | VMA-3342 | 3/4 | 5/8 | 1/4-20 | 1/4-20 |
| + | VMA-3344 | 3/4 | 5/8 | M4 | M4 |
| + | VMA-3346 | 3/4 | 5/8 | 10-32 | 10-32 |
| + | VMA-3348 | 3/4 | 3/4 | M8 | M8 |
| + | VMA-3350 | 3/4 | 3/4 | 1/4-20 | 1/4-20 |
| + | VMA-3352 | 1 | 3/8 | 1/4-20 | 1/4-20 |
| + | VMA-3354 | 1 | 5/8 | 1/4-20 | 1/4-20 |
| + | VMA-3356 | 1 | 9/16 | 1/4-20 | 1/4-20 |
| + | VMA-3358 | 1 | 3/4 | 10-32 | 10-32 |
| + | VMA-3360 | 1 | 3/4 | 5/16-18 | 5/16-18 |
| + | VMA-3362 | 1 | 3/4 | 1/4-20 | 1/4-20 |
| + | VMA-3364 | 1 | 3/4 | M6 | M6 |
| + | VMA-3366 | 1 | 3/4 | 5/16-18 | 5/16-18 |
| + | VMA-3368 | 1 | 3/4 | 8-32 | 8-32 |
| + | VMA-3370 | 1 | .850 | 5/16-18 | 5/16-18 |
| + | VMA-3372 | 1 | 1 | 10-32 | 10-32 |
| + | VMA-3374 | 1 | 1 | M5 | M5 |
| + | VMA-3376 | 1 | 1 | 5/16-18 | 5/16-18 |
| + | VMA-3378 | 1 | 1 | 5/16-24 | 5/16-24 |
| + | VMA-3380 | 1 | 1 | 1/4-20 | 1/4-20 |
| + | VMA-3382 | 1 | 1 | M6 | M6 |
| + | VMA-3384 | 1 | 1-1/4 | 1/4-20 | 1/4-20 |
| + | VMA-3386 | 1 | 1-3/8 | 3/8-16 | 3/8-16 |
| + | VMA-3388 | 1 | 1-1/2 | 1/4-20 | 1/4-20 |
| + | VMA-3390 | 1-1/4 | 1 | 5/16-18 | 5/16-18 |
| + | VMA-3392 | 1-1/4 | 1 | 5/16-18 | 5/16-18 |
| + | VMA-3394 | 1-1/4 | 1-1/4 | 5/16-18 | 5/16-18 |
| + | VMA-3396 | 1-1/4 | 1-1/4 | 1/4-20 | 1/4-20 |
| + | VMA-3398 | 1-1/2 | 1-3/8 | 3/8-16 | 3/8-16 |
| + | VMA-3500 | 1-1/2 | 1 | 5/16-18 | 5/16-18 |
| + | VMA-3502 | 1-1/2 | 1 | 3/8-16 | 3/8-16 |
| + | VMA-3504 | 1-1/2 | 1 | 3/8-16 | 3/8-16 |
| + | VMA-3506 | 2 | 3/4 | 3/8-16 | 3/8-16 |
| + | VMA-3508 | 2 | 1-13/16 | 3/8-16 | 3/8-16 |
| + | VMA-3510 | 10MM | 10MM | M4-7 | M4-7 |
| + | VMA-3512 | 19MM | 15MM | M6 | M6 |
| + | VMA-3514 | 20MM | 30MM | M8 | M8 |
| + | VMA-3516 | 40MM | 30MM | M8 | M8 |
| + | VMA-3520 | 1/2 | 1/2 | M4-7 | M4-7 |
| + | VMA-3522 | 1/2 | 9/16 | M4-7 | M4-7 |
| + | VMA-3524 | 1/2 | .800 | M4-7 | M4-7 |
